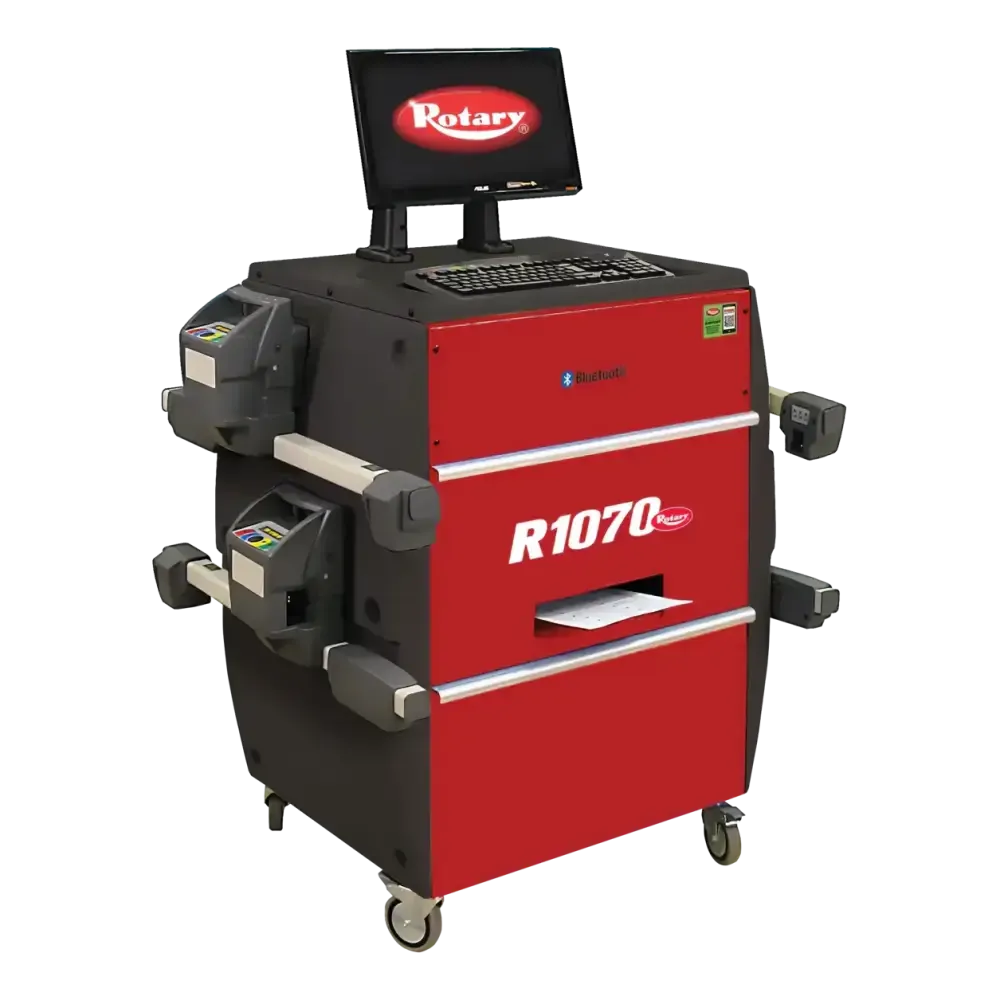

Name: Rotary R1070 Wireless Aligner, PRO CCD Alignment System
SKU: 125301

Looking for a complete, mobile alignment solution for your shop? The Rotary R1070 CCD Aligner is designed for busy tire techs and mechanics who need speed, precision, and flexibility. This wireless, tower-free system streamlines 3D alignment with an 8-CCD sensor setup and Bluetooth communication, delivering fast, accurate measurements without cables in the way. The R1070 features a powerful PC, 19in LCD monitor, and intuitive software with animated 3D guidance, making it easy to follow each alignment step. Its quick-locking tire clamps fit up to 36in wheels, ideal for a wide range of vehicles, from everyday cars to tuned sports models.

Enhanced with a 90,000 vehicle database, quick runout and diagnostic features, and efficient data management for up to 20,000 records, the R1070 is built for high-volume shops that value organization and performance. Its durable, wheeled console keeps the system portable, while the built-in A4 printer provides professional printouts. The R1070 offers everything alignment pros need for efficient, precise work—making it a standout choice among competitors.

Features:

Wireless 3D alignment for efficient, clutter-free workspace

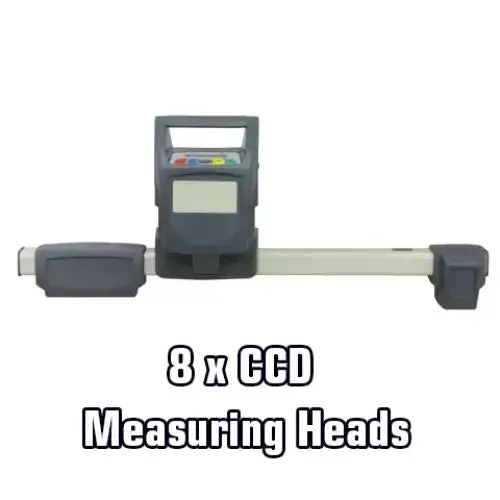

8-CCD sensors deliver fast, precise alignment readings
Bluetooth connectivity enables seamless, real-time data transmission
Portable, tower-free console maximizes shop floor space

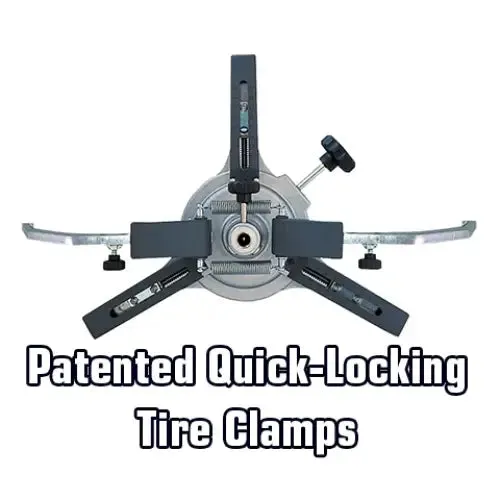

Quick-lock tire clamps fit wheels up to 36in diameter
19in LCD monitor with 3D animated, step-by-step guidance
Built-in A4 printer for easy, professional documentation
90,000 vehicle database for quick vehicle entry
Manage 20,000 jobs with searchable customer data bank
Quick runout function requires only 30° wheel movement
Comprehensive diagnostics for axle, wheelbase, track width
Automatic spoiler program for sport and tuned vehicles
High-quality PC and mobile cabinet for durability
LED repeaters and quick-charge hangers for convenience
Reliable, precise alignment solution for high-volume shops

Specs:

Front Axle
- Total Toe Accuracy: /- 2ft
- Measuring Range: /- 2°
- Total Measuring Range: /- 20°
- Partial Toe Accuracy: /- 1ft
- Measuring Range: /- 1°
- Total Measuring Range: /- 20°
- Set-back Accuracy: /- 2ft
- Measuring Range: /- 2°
- Total Measuring Range: /- 5°
- Camber Accuracy: /- 2ft
- Measuring Range: /- 3°
- Total Measuring Range: /- 10°
- Caster Accuracy: /- 5ft
- Measuring Range: /- 10°
- Total Measuring Range: /- 18°
- King-pin Accuracy: /- 5ft
- Measuring Range: /- 10°
- Total Measuring Range: /- 18°

Rear Axle
- Total Toe Accuracy: /- 2ft
- Measuring Range: /- 2°
- Total Measuring Range: /- 20°
- Partial Toe Accuracy: /- 1ft
- Measuring Range: /- 1°
- Total Measuring Range: /- 20°
- Set-back Accuracy: /- 2ft
- Measuring Range: /- 2°
- Total Measuring Range: /- 5°
- Camber Accuracy: /- 2ft
- Measuring Range: /- 3°
- Total Measuring Range: /- 10°
- Thrust Angle Accuracy: /- 2ft
- Measuring Range: /- 2°
- Total Measuring Range: /- 5°

Power Supply: 110v / 1Ø / 60 Hz
Color: Red
Weight: 310 lbs
Qty: 1 Unit

Ref No.
ROTR1070

Similar Products
R1065 (CCD)
R1085 (3D Aligner)
R1090 (Pro 3D Aligner)
R5000HD (CCD Truck Aligner)

Ref Name
Portable Aligner System
CDD Wheel Alignment System
Tower-Free Aligner

Application:

Wheel Alignment Service

For Industries
Auto Dealers
Auto Fleets
Auto Repair
Collision Repair
Commercial Fleets

Includes:

1 x Control Unit with PC, 19in Monitor, Keyboard, Printer, and Battery Charger

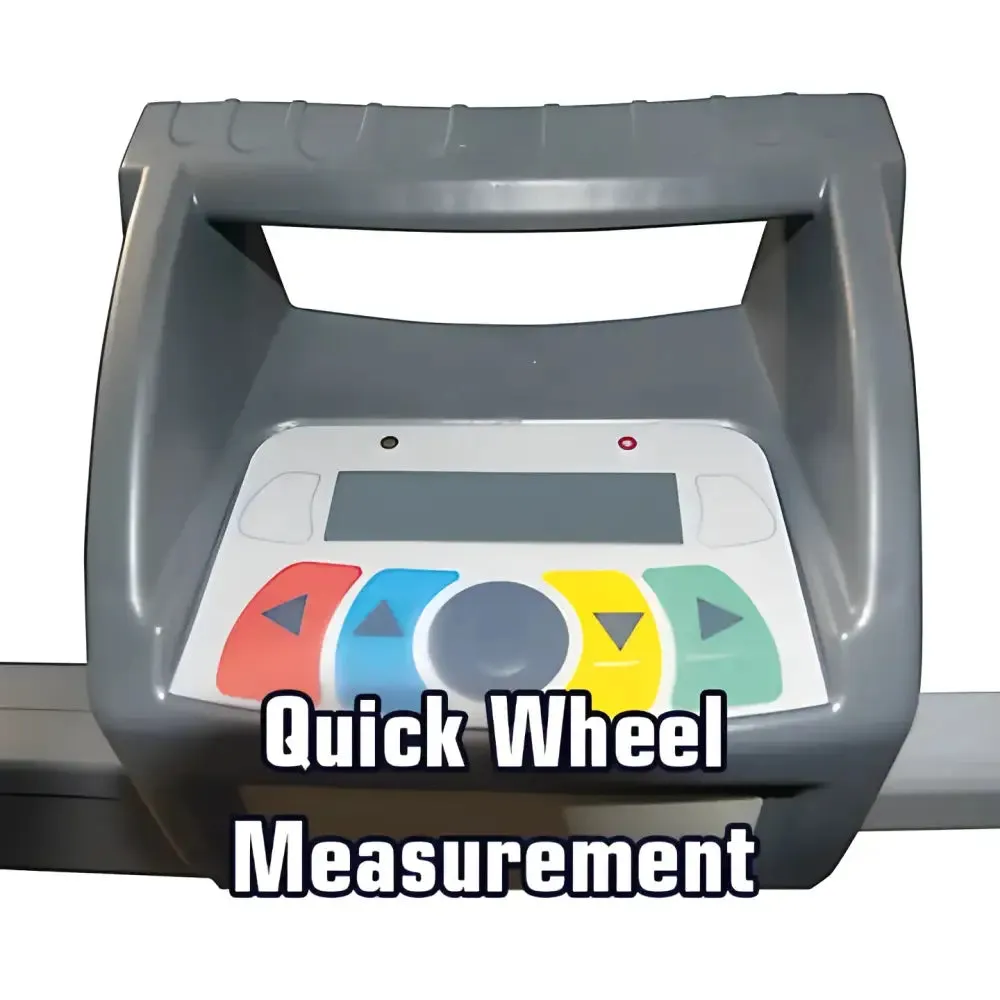

2 x Front Measuring Head
2 x Rear Measuring Head
4 x STDA35E 3-Point Clamps with Targets
6 x Sets of Extensions for Dually Wheels
1 x Brake Pedal Depressor
1 x Steering Wheel Lock
1 x Instruction Manual on USB Drive

Specification Updates
1 x Year
